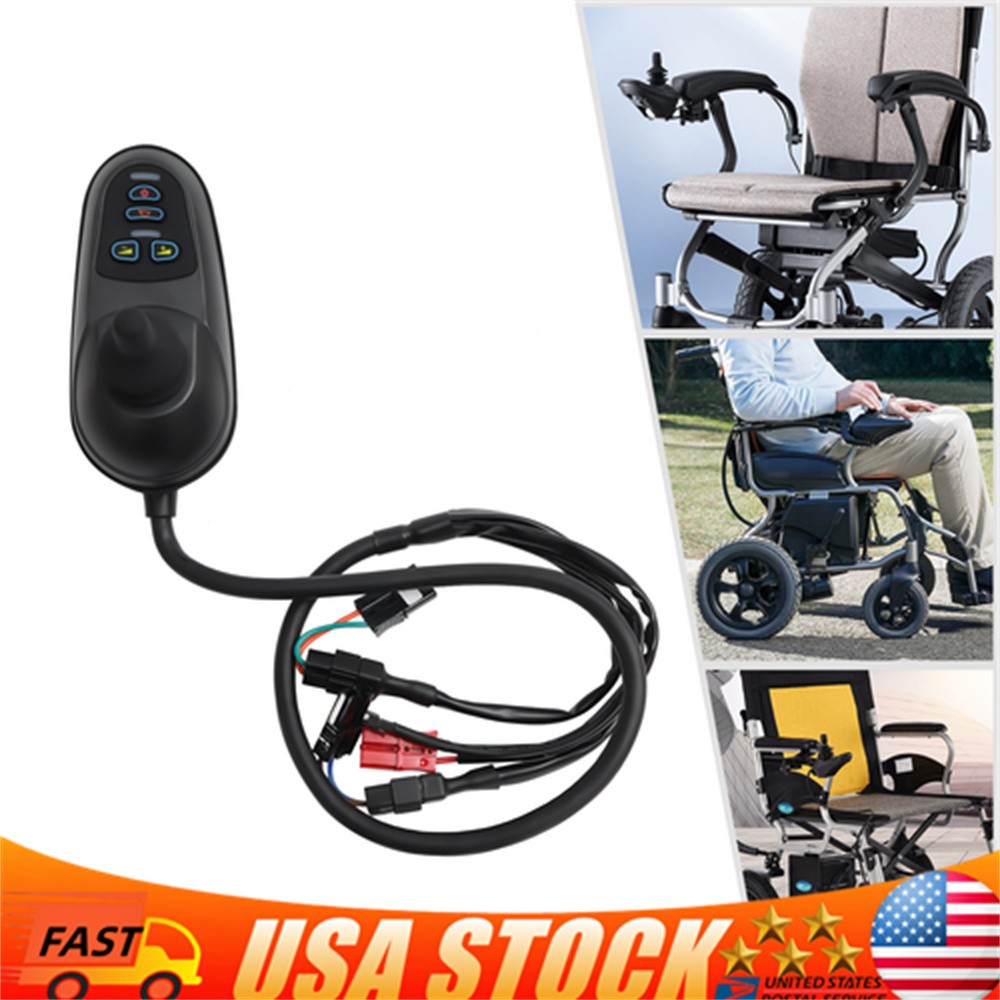

4 Keys Electric Power Wheelchair Controller Joystick Waterproof Part Accessories
Specifications
| Transportation Does Not Include | canarias |
| Type | LED command joystick |
| Color | Black |
| Model | WB5003 |
| Material | Aluminum, Plastic |
| Connection Mode | ML2P+Adapter Cable |
| Brake Voltage | 24V |
| Output Current | 50A |
| Operating Voltage | DC 19-32V |
| Charging Current | Max. 6A |
| Peak Voltage | DC 35V |
| Supply Voltage | DC 24V |
| Standby Required Current | (At rest): ≤50 mAmps |
| Standby Required Current (Power Off) | 0.1+0.05 mAmps |
| Adjustable Speed | 5 Gears |
| Applicable Drive Motor | 24V DC Brush Motor |
| Brand | Unbranded |
Specifications Item Type: Electric Wheelchair Controller Color: Black Material: Aluminum, ABS Connection Mode: ML2P+ Adapter Cable Supply Voltage: DC 24V Operating Voltage: DC19-32V Peak Voltage: DC 35V Output Current: 50A Brake Voltage: DC24V Brake Current: 3A Max. For Single Circuit Battery Charging Current: Maximum 6A(Through the Controller Charging) Standby Current(Stationary): ≤ 50mA Standby Current(Power Off): 0.1 ± 0.05mA Operating Temperature: -25~60°C/-13~140℉ Storage Temperature: -45~ 80°C/-49~176℉ Applicable Drive Motor: 24V DC Brush Motor Mounting Hole Distance: 40mm/1.57in Drive Mode: PWM Duty Cycle Adjustment, Soft Start, Electrical Differential Adjustable Speed: 5 Gears Waterproof Level: IPX3 Line Length: 1.2 m/3.93ft Product Size: 19*9.3*8.8cm/7.48*3.
